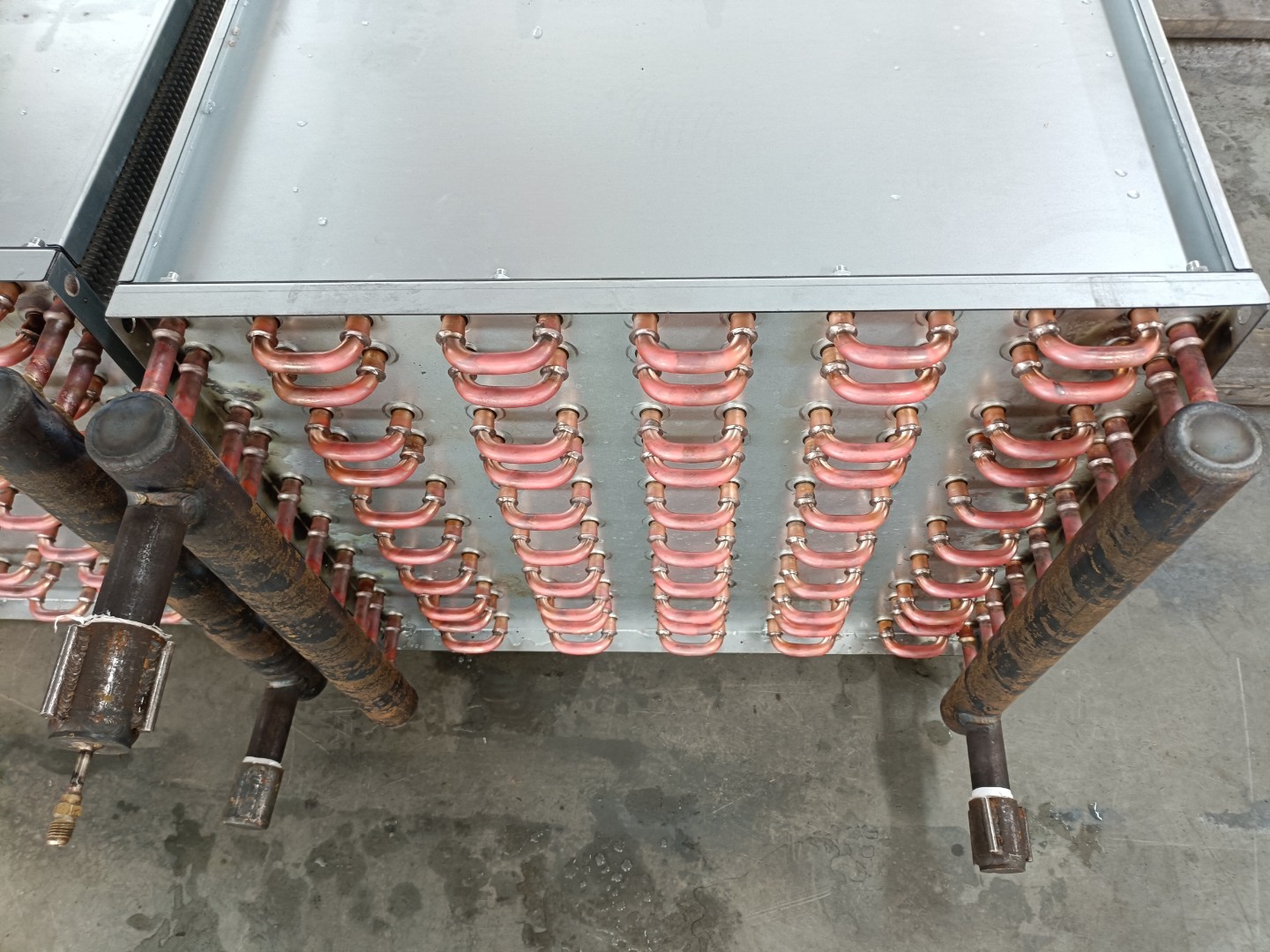

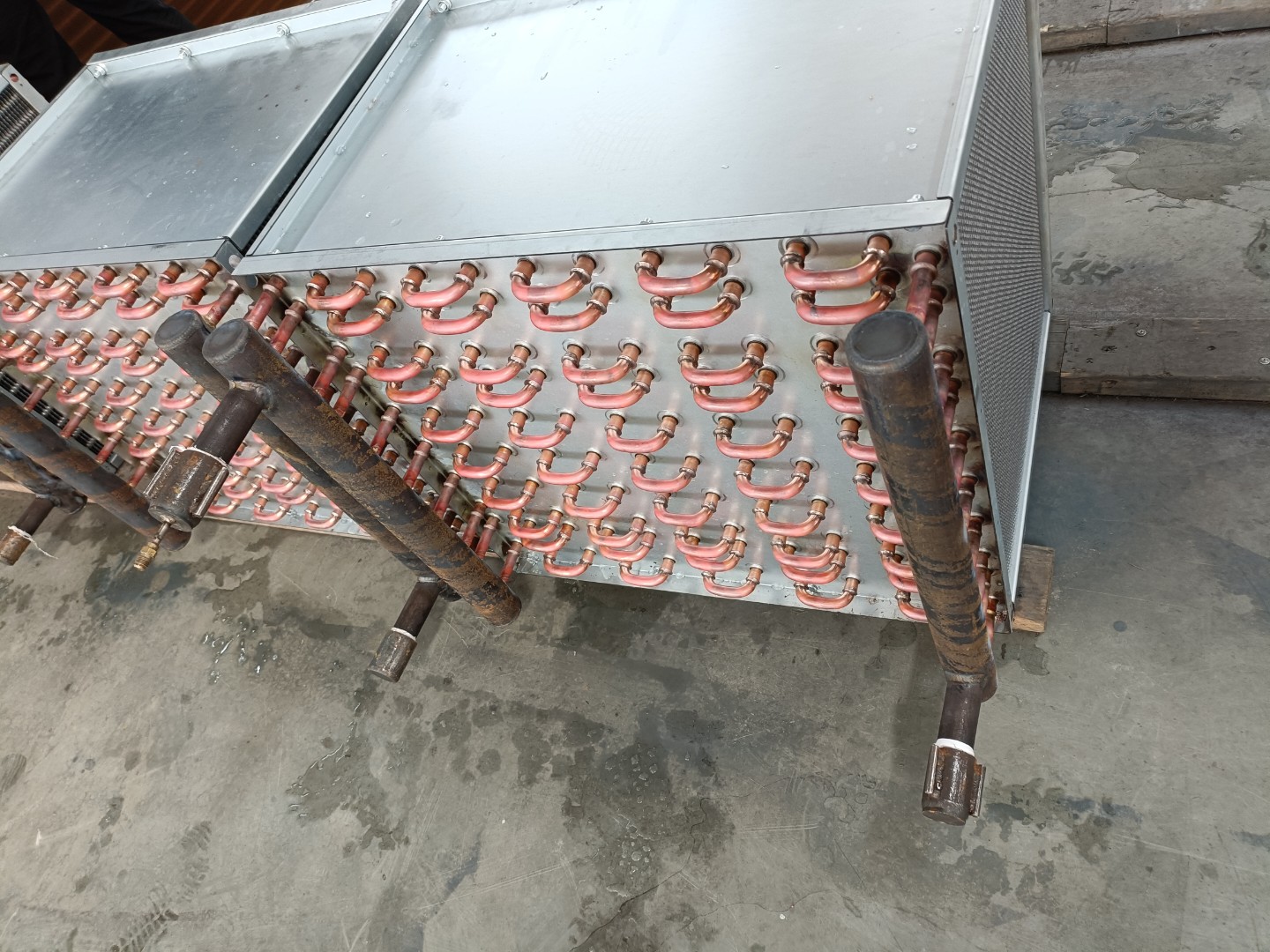

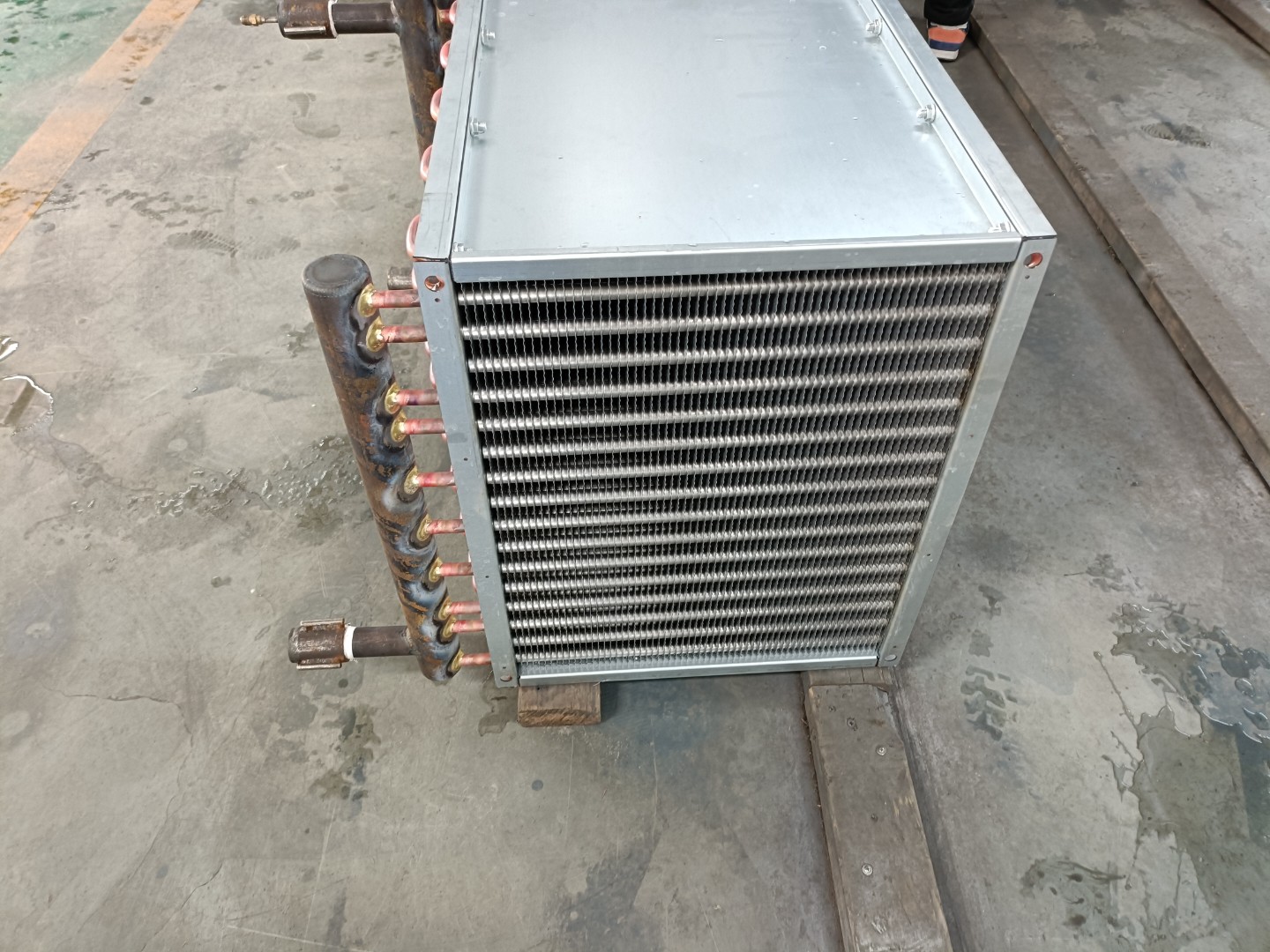

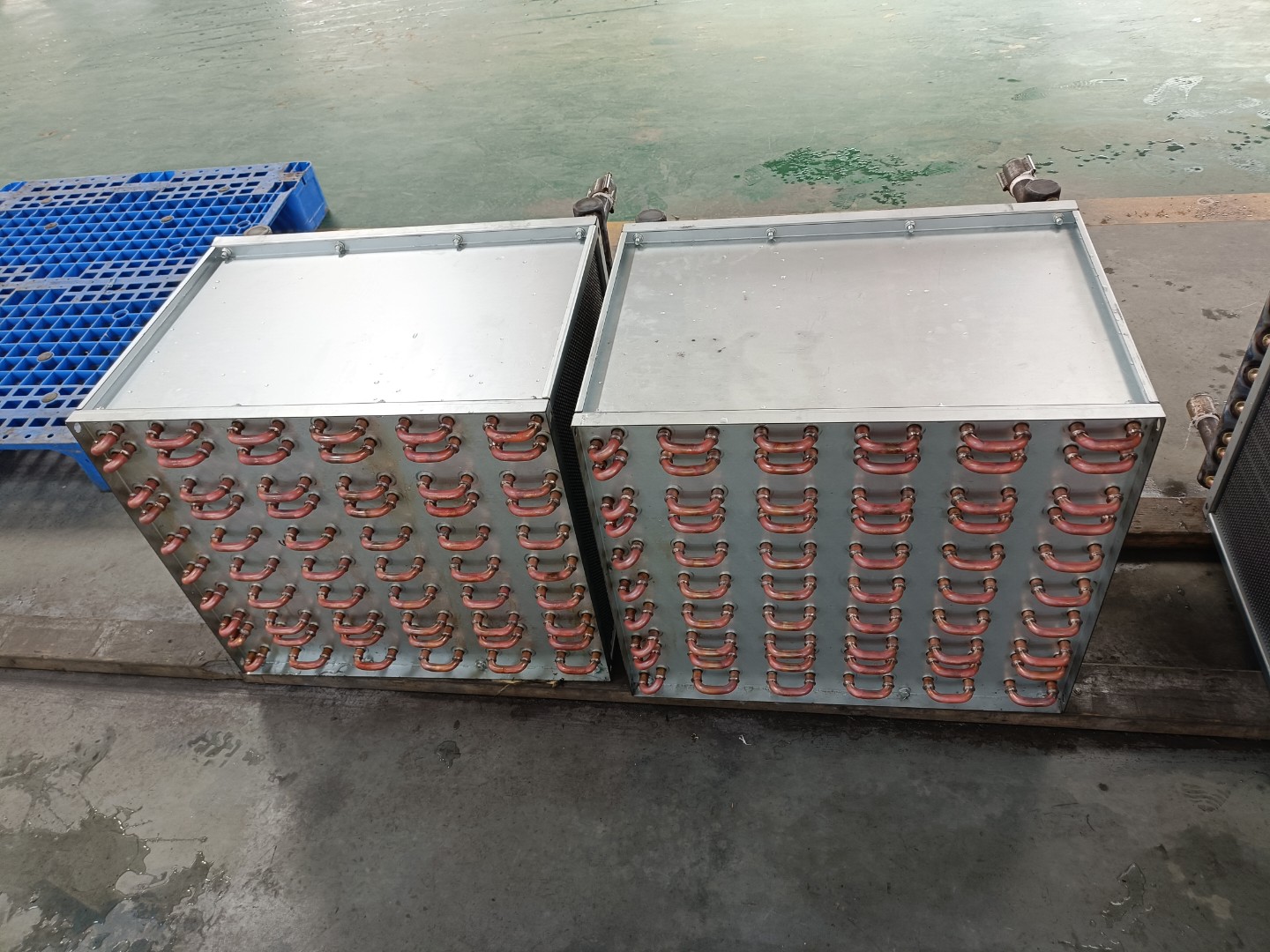

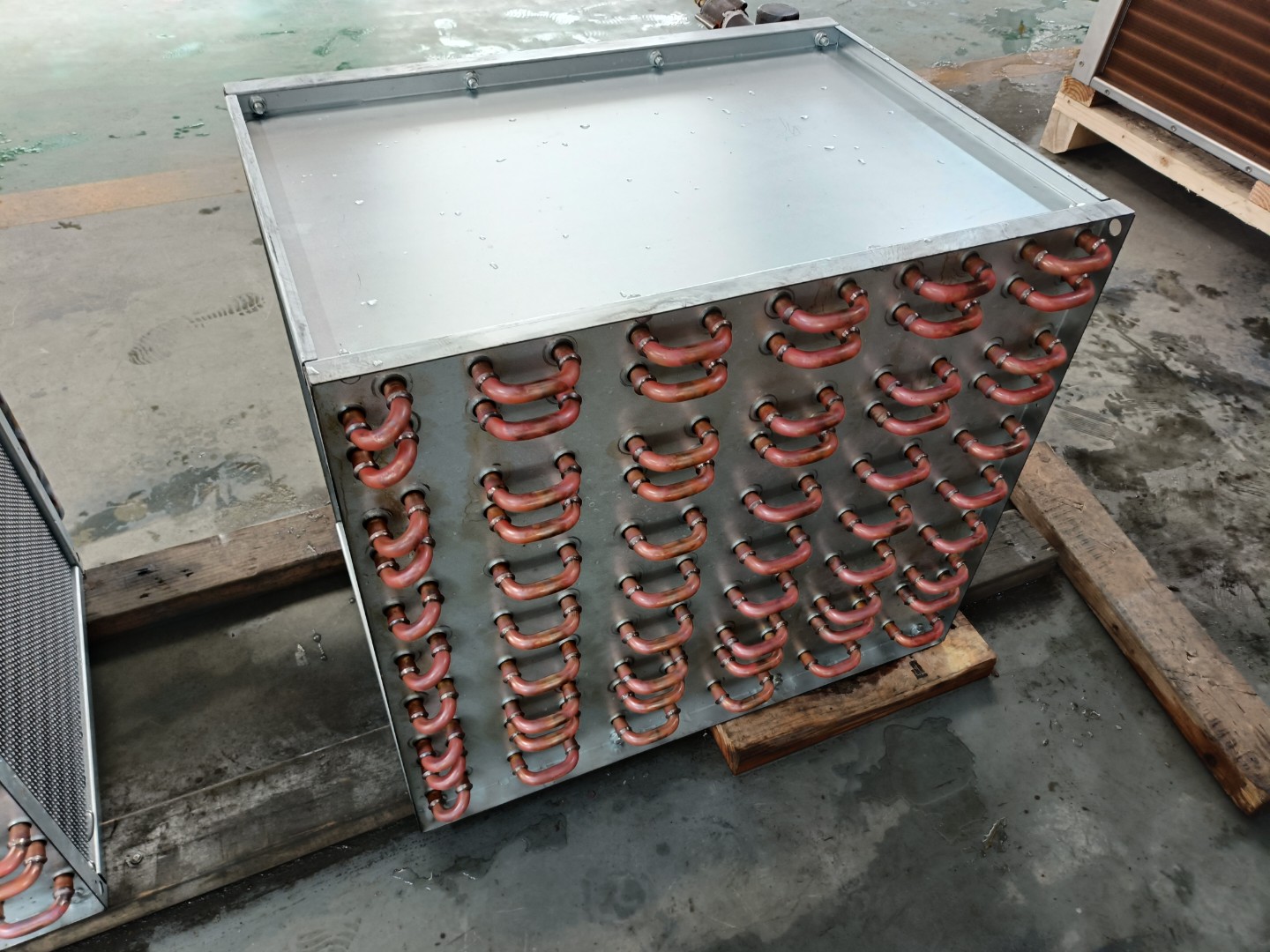

Industrial fin tube condenser for ammonia-based systems

Condenser and Evaporator: Key Components of Refrigeration and Air Conditioning Systems

The condenser and evaporator are two core components in refrigeration and air conditioning systems, with distinct roles and application areas as follows:

Condenser Applications

The condenser releases heat, condensing high-temperature, high-pressure refrigerant vapor into a liquid state. Its primary function is heat dissipation.

Common Applications:

Air Conditioning Systems
Releases heat absorbed from indoor spaces, commonly used in residential and commercial air conditioners.
Refrigeration Equipment
Found in refrigerators and freezers to cool the high-temperature refrigerant discharged by the compressor.
Industrial Refrigeration
Cools gaseous substances in processes such as chemical production, often utilized in cooling towers.
Power Plants
In thermal power stations, used to condense steam back into water for reuse in the cycle.
Heat Pump Systems
In heating mode, the condenser releases absorbed heat to warm indoor air or water.
Chiller Units
Dissipates heat generated during industrial processes.

Evaporator Applications
The evaporator absorbs heat from the surroundings or objects, evaporating the liquid refrigerant into a gaseous state. Its primary function is heat absorption.

Common Applications:
Air Conditioning Systems
Absorbs indoor heat to cool the space in both residential and commercial air conditioning systems.
Refrigeration Equipment
Extracts heat from stored items in refrigerators and freezers to maintain low temperatures.
Industrial Refrigeration
Used in large-scale cold storage, chemical plants, and food processing to absorb process heat.
Heat Pump Systems
In cooling mode, absorbs heat from the environment to achieve cooling effects.
Dehumidification Systems
Removes moisture from the air by condensing it on the cold evaporator surface.

Comparison and Collaboration
Complementary Functions:
The evaporator absorbs heat (low-pressure side), while the condenser releases heat (high-pressure side).
Thermodynamic Cycle:
Together, they enable the refrigerant to undergo a continuous thermodynamic cycle, making refrigeration and air conditioning possible.
Design Variations:
Based on application, they can be air-cooled, liquid-cooled (e.g., water or oil-cooled), or designed as plate or shell-and-tube structures.

Summary
The evaporator primarily absorbs heat from the environment or objects, while the condenser primarily dissipates heat. Their synergy is indispensable in refrigeration and air conditioning systems, enabling efficient thermal management across various applications.
