Why Are Dry Coolers Increasingly Popular in the Market?

The Energy-Saving Era Calls for New Cooling Solutions

Amidst the accelerating global energy transition and industrial modernization, various industries are actively seeking more energy-efficient, environmentally friendly, and efficient cooling methods. While traditional wet cooling towers offer low costs, their limitations are becoming increasingly apparent amidst water scarcity, environmental regulations, and rising maintenance costs.



At the same time, dry coolers are gradually gaining market recognition. Using air as a cooling medium, they avoid water waste, reduce operating and maintenance costs, and better meet the needs of modern businesses for sustainable development and intelligent upgrades.



From data centers to industrial manufacturing, from new energy projects to cold chain transportation, dry coolers are quietly transforming heat dissipation across various industries and becoming a key direction for future cooling system development.





What is a Dry Cooler? Working Principle and Technological Evolution

What is a Dry Cooler?

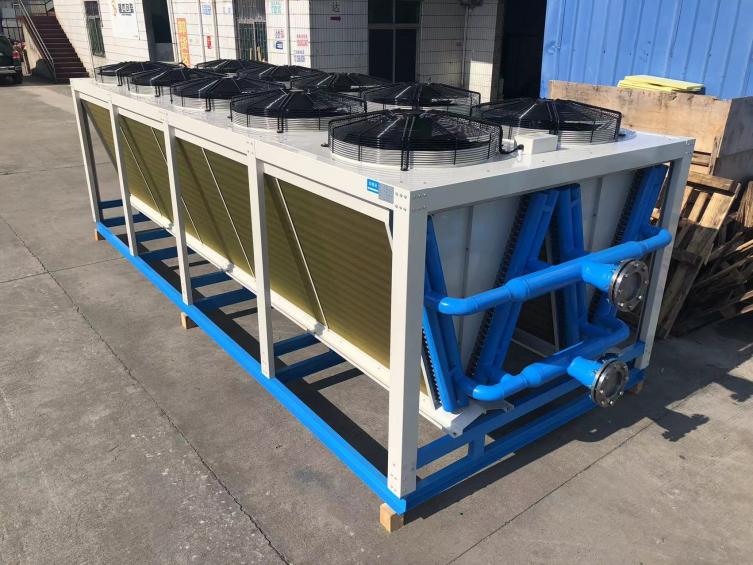

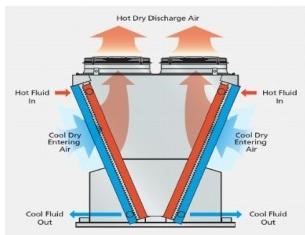

A dry cooler, also commonly referred to as an air-cooled heat exchanger, is a specialized device designed to dissipate excess heat generated by industrial processes into the surrounding atmosphere. Its core operating principles are based on sensible heat rejection through convection and conduction, cleverly utilizing ambient air as the primary cooling medium. Crucially, this process does not rely on water evaporation, making it more stable than traditional wet cooling systems.

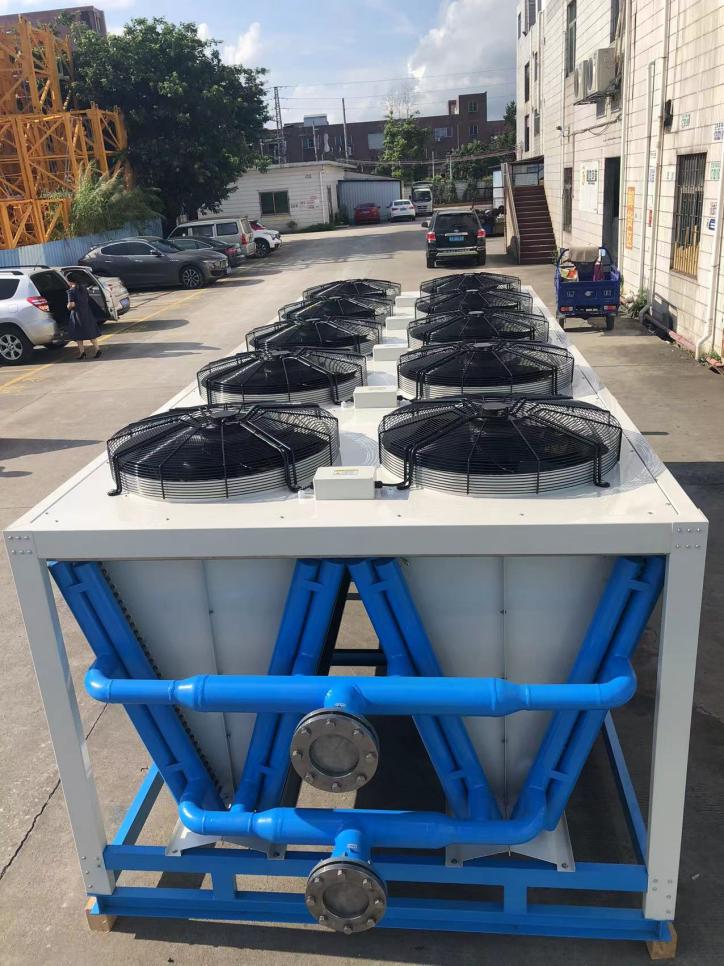

1. Technical Components

The effectiveness of a dry cooler stems from the synergy of its meticulously designed components:

Fin Tube Coil: Increases heat exchange area and improves heat transfer efficiency;

High-efficiency Fan System: Includes axial fans and variable-frequency motors to reduce noise and energy consumption;

Intelligent Control System: Automatically adjusts air speed, air volume, operating time, and other features, supporting integration with the factory DCS system;

Material Options: Includes aluminum fins, stainless steel tubes, copper tubes, and zinc-sprayed carbon steel, allowing for adaptation to various operating conditions.



2. Technical Trends

With continuous advances in materials science and intelligent manufacturing, modern dry coolers continue to evolve, pushing the boundaries of efficiency.

Low-noise structure: Utilizes silent fan blades and soundproofing;

Intelligent Control System: Enables remote monitoring and debugging via a cloud platform;

Integrated Hybrid System: Adds a spray or evaporation module to achieve "dry + wet" switching and improve peak heat dissipation;

Module Standardization: Facilitates batch installation, capacity expansion, and project replication.



Dry Cooler vs. Wet Cooling Tower

When choosing cooling equipment, many users consider the trade-off between dry coolers and traditional wet cooling towers.

Dimensions	Dry Cooler	Wet Cooling Tower
Cooling Method	Air Cooling (Sensible Heat Rejection)	Evaporative Cooling (Latent Heat Transfer)
Water Consumption	Minimal or no, saving over 95%	Continuous water usage requires replenishment.
Energy Efficiency	No water pumps or water treatment required, enabling free cooling	Evaporative cooling is highly efficient, but it requires pumps and fans.
Maintenance Requirements	Low, primarily fan and coil cleaning; no water treatment	High, requiring packing cleaning, water quality management,and chemical treatment
Environmental Impact	Small water footprint, no wastewater or chemical discharge	High water usage may require the discharge of chemical treatment water
Regulatory Compliance	Highly compliant, simplifies environmental audits	Increasingly challenging to pass environmental audits due to water/chemical regulations
Service Life	15-25 years	10-15 years



As can be seen, dry coolers offer significant advantages in terms of water conservation, environmental protection, and operational maintenance. While their initial investment cost is sometimes higher than traditional wet cooling systems, their lower operating costs, reduced maintenance, and long service life lead to a significantly lower total cost of ownership (TCO) and a faster payback period over their lifecycle.



Why are dry coolers becoming increasingly popular?

Dry coolers are not a mere alternative; their increasing popularity is a direct response to global challenges and evolving industrial demands. Their inherent design and technological advancements address critical pain points faced by businesses today.



1. Saving Water and Energy, Meeting Environmental Trends

Water scarcity is a pressing global issue, with over 40% of the world's population living in water-stressed areas. Industrial cooling is a major consumer of freshwater, making water conservation a top priority. As zero-water consumption devices during operation, dry coolers offer a compelling solution that effectively:

Reduces freshwater withdrawal and wastewater discharge: Dry coolers consume virtually no water, leading to over 95% reduction in water usage compared to wet cooling methods.

Reduces chemical use: Their closed-loop design eliminates the need for expensive and environmentally impactful water treatment chemicals, which are essential for wet cooling systems to prevent scaling, corrosion, and biological growth.

Reduces wastewater treatment costs: By eliminating chemical-laden wastewater, dry coolers simplify compliance and reduce associated disposal costs.



2. Simple Maintenance and Low Operating Costs

Dry coolers inherently simplify maintenance and reduce operational expenditures. Unlike wet cooling towers, they lack a packing layer and an open circulating water system, meaning:

No need to clean scale or packing: The absence of water circuits drastically reduces the risk of scaling, corrosion, and biological contamination, which are common and costly issues in wet cooling systems.

Simple fan maintenance: Routine maintenance primarily involves cleaning heat exchanger fins and inspecting fan blades. Modern systems with IoT integration enable continuous real-time monitoring of critical parameters, allowing for early detection and resolution of potential issues, thereby reducing unexpected downtime and optimizing component replacement.

Long system life: Fewer moving parts and the elimination of water-based components enhance system reliability and longevity, contributing to a longer service life of 15-25 years.



3. Higher System Safety

Dry coolers offer enhanced safety due to their closed-loop operation, which prevents contaminants from entering the circulation loop.

Ensuring production continuity: The closed system maintains the purity of the cooling medium, reducing the risk of unexpected failures and maximizing uptime, which is critical for industries where downtime costs are prohibitive.

Preventing equipment damage: By isolating the process fluid, dry coolers protect sensitive equipment from fouling and corrosion, extending their lifespan and reducing the need for costly repairs.

Reducing the risk of accidents: The elimination of standing warm water means there is no risk of Legionella contamination, a significant health and safety concern associated with evaporative cooling systems.



4. High Adaptability

Dry coolers are highly versatile and adaptable to diverse environmental and installation requirements:

Adapts to extreme climate conditions: While pure dry coolers are most efficient in cooler climates, innovations like adiabatic and hybrid systems extend their operational viability to hot and dry environments, allowing them to perform effectively even when ambient temperatures exceed 35°C.

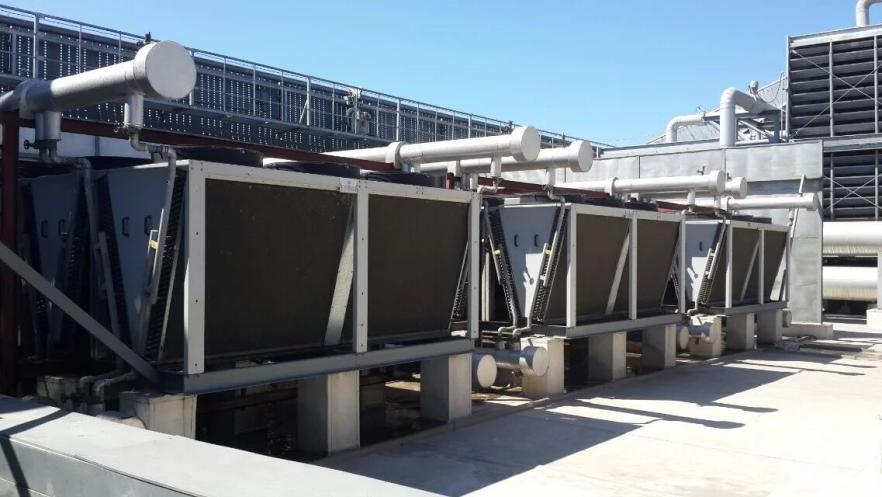

Can be installed multiple places: Their flexible design and modularity allow for various installation configurations, optimizing space utilization. Some advanced designs can even reduce overall footprint by up to 33% and rooftop weight by 20%.

Modular structure facilitates transportation, assembly, and commissioning: The modular design simplifies logistics, installation, and future capacity expansion without significant service interruption.



5. Easy Intelligent Upgrade

Dry coolers are at the forefront of industrial digitalization, utilizing modern automation technology to be seamlessly integrated with advanced control and monitoring systems:

DCS industrial control systems: Integration with Distributed Control Systems allows for centralized management and precise control of cooling operations within a broader industrial process.

SCADA remote monitoring platforms: Supervisory Control and Data Acquisition systems enable real-time performance tracking, remote alarms, and data visualization, allowing operators to monitor and optimize performance from anywhere.

Industrial Internet platforms (such as Huawei Cloud and ABB Ability): Connectivity to cloud-based Industrial IoT (IIoT) platforms facilitates extensive digital data collection, energy efficiency tracking, predictive maintenance, and historical analysis, transforming cooling into a smart, interconnected component of overall operational efficiency.





Who is Driving the Popularization of Dry Coolers?

Dry coolers are not a "general-purpose" product. Their rapid adoption into cooling systems across various industries is due to their characteristics precisely matching the technical, cost, and compliance requirements of specific scenarios.

Data Center:

Suitable for data center construction with high PUE standards: Dry coolers significantly reduce water usage (industry impact data shows a 63% reduction in water usage ) and support "free cooling" strategies, directly contributing to lowering Power Usage Effectiveness (PUE) ratings

Can operate year-round, suitable for the low-temperature environments of North America, Northern Europe, and Asia-Pacific: Nearly 50% of data centers in the Nordics, for example, use air-based or hybrid dry cooling systems due to cold climates and high renewable energy integration.

Combined with free cooling systems, they can achieve energy savings of 30%-50%: This is achieved by leveraging ambient air temperatures to reduce or eliminate the need for energy-intensive mechanical chillers.

Easy remote monitoring and automatic switching of operating states: Dry coolers seamlessly integrate with emerging technologies such as liquid cooling and rear-door heat exchangers, making them a flexible and future-proof solution for next-generation IT infrastructure.





2.Pharmaceuticals and Fine Chemicals:

Suitable for GMP cleanrooms: The closed-loop design of dry coolers isolates the process fluid from external contamination, which is paramount for maintaining purity and preventing product degradation.

No risk of microbial contamination: Unlike wet cooling systems, dry coolers eliminate the risk of Legionella and other waterborne pathogens, which is a significant health and safety concern in sensitive production areas.

Easier to pass pharmaceutical industry compliance audits: By eliminating water-related issues and chemical usage, dry coolers simplify environmental compliance and regulatory adherence. Typical requirements in these industries include temperature control accuracy within 0.1°C and year-round sterile heat dissipation, which dry coolers can reliably provide.



3.New Energy Industry:

Fast response, meeting thermal fluctuations during battery charging and discharging: Battery thermal management systems (BTMS) are crucial for maintaining the safety, stability, and lifespan of batteries, especially lithium-ion batteries, which require precise temperature control. Dry coolers help regulate temperature and manage heat during electricity conversion or storage, contributing to the efficiency and performance of energy storage systems.

Modular design supports portable energy storage, mobile power stations, and outdoor distributed energy facilities: Their compact and modular nature makes them suitable for diverse renewable energy projects, including those with space constraints or requiring mobility.

Water-free, suitable for harsh environments such as deserts and plateaus: Concentrated Solar Power (CSP) plants, for instance, often operate in arid regions where dry cooling is essential for dissipating excess heat and preserving the integrity of the installations. Dry cooling also allows for greater flexibility in selecting power plant sites based on fuel accessibility rather than water availability (e.g., for biomass power generation).



4.Cold Chain Transportation and Food Processing: Ensuring Food Safety

Constant temperature control in production workshops: Dry coolers regulate temperatures in production areas, ensuring product quality and food safety.

Cooling systems for ice-making equipment and coolant cooling in cold chains: They are vital for maintaining the integrity of products like dairy, meat, and seafood throughout the supply chain.

Mold temperature control systems for automated production lines: For powdered foods, dry coolers provide a gentle, dry cooling process that prevents moisture absorption, caking, and product degradation, crucial for items like milk powder, instant coffee, and spice powders.



5.Industrial Manufacturing: A Cooling Tool for High-Temperature Equipment

In industries such as metal processing, plastic molding, die-casting, chemical fiber, and rubber, equipment generates significant heat during operation. Traditional cooling water circulation often faces scaling and corrosion issues, leading to short system maintenance cycles and significant equipment wear. Production processes require high continuity, preventing frequent downtime.

Dry coolers offer a more "industrial-grade" solution for these high-temperature applications, including cooling compressors, generators, and hydraulic systems. They ensure efficient heat transfer, maintain optimal operating conditions, and enhance product quality and operational safety. By eliminating water-related problems, dry coolers extend maintenance cycles and significantly improve operational stability and reliability.



Strategic Alignment with Global Trends

Dry coolers are not just a technological advancement; they are a strategic asset that aligns perfectly with the overarching global trends shaping modern industry and society.

1. Low-Carbon Policies Accelerate the Marketization of Dry Coolers

Driven by policies such as the Paris Agreement, the EU carbon border tax, and China's "Dual Carbon Goals," the energy-saving and carbon-reducing cooling technology represented by dry coolers has become an inevitable trend. Dry coolers directly contribute to a greener, more environmentally responsible industrial future by:

Reducing a company's total carbon emissions: By significantly reducing energy consumption and often eliminating the need for harmful chemical refrigerants, dry coolers lead to lower greenhouse gas emissions and a smaller overall carbon footprint.

Helping companies obtain green certifications: Their minimal water usage and low carbon footprint align seamlessly with green building initiatives and sustainability certifications, making them a preferred choice for environmentally conscious projects.

Enabling them to enjoy policy benefits such as subsidies and tax credits for purchasing energy-saving equipment: Governments worldwide offer incentives for water-saving and energy-efficient technologies, further enhancing the economic attractiveness of dry coolers.



2. The Trend of Combining Factory Digitalization with Intelligent Operations and Maintenance

Driven by Industry 4.0 and the Industrial Internet, factories are gradually shifting toward a system architecture characterized by "visualization + intelligence + remote control". Dry coolers are integral to this transformation, supporting:

Automatic switching of multiple fan groups: Intelligent fan controls and EC motors allow for dynamic adjustment of airflow based on real-time heat loads, optimizing energy consumption.

Online energy consumption monitoring: IoT integration enables continuous real-time tracking of temperature, flow rates, and fan status, providing valuable data for energy optimization and efficiency analysis.

Fault alarms and self-diagnosis: Predictive maintenance capabilities, enabled by sensor data and advanced algorithms, allow for early detection of potential issues, reducing unexpected downtime and optimizing maintenance schedules.

Historical data export and trend analysis: Comprehensive data logging allows for in-depth analysis of system performance over time, facilitating continuous improvement and strategic planning.



3. Improved Customer Experience and Increased User Lifecycle Value

For end customers, dry coolers offer more than just "more stable equipment operation." They also offer a compelling value proposition that enhances the overall customer experience and increases user lifecycle value:

Reduced after-sales maintenance and reduced downtime: The inherent low maintenance requirements and high reliability of dry coolers translate directly into less operational hassle and fewer unexpected interruptions for businesses.

Long equipment life and high return on investment: With a typical operating lifespan of 15-25 years and lower total cost of ownership, dry coolers provide a durable and financially sound investment.

Modules can be upgraded simultaneously with project expansion: The modular and scalable design ensures that cooling infrastructure can grow seamlessly with business needs, protecting initial investments and simplifying future expansions.

A more environmentally friendly and technologically advanced brand image: Adopting dry coolers demonstrates a commitment to sustainability and innovation, enhancing a company's reputation among environmentally conscious customers, investors, and regulatory bodies.



Summary: Dry Coolers Are a Future-Oriented Cooling Solution

The increasing popularity of dry coolers in the market is a testament to their multifaceted advantages and their perfect alignment with global industrial and environmental imperatives. From significant water and energy conservation to enhanced environmental compliance, from intelligent control capabilities to simplified operation and maintenance, dry coolers surpass traditional cooling towers in many aspects, truly representing the next generation of industrial cooling solutions.

It is not just a choice of equipment; it represents a fundamental shift in business philosophy:

From high energy consumption to high efficiency: Embracing technologies that optimize resource use and reduce operational costs.

From short-term savings to long-term investment: Prioritizing solutions that offer superior economic benefits over their entire lifecycle.

From manual maintenance to intelligent control: Leveraging automation and data analytics for proactive management and enhanced reliability.

From local considerations to system optimization: Adopting integrated solutions that contribute to broader sustainability goals and operational resilience.

Faced with the global trend toward green development and the dual challenges of energy and environmental protection, dry coolers are undoubtedly a priority for cooling system investment. If companies hope to remain competitive and sustainable in the next 5-10 years, embracing dry cooling technology is not merely an option but a strategic imperative.



FAQ

Q1: Can dry coolers completely replace cooling towers?

A: In most medium and low-temperature cooling scenarios, dry coolers can effectively replace cooling towers, especially where water conservation is a priority. In areas with extremely high heat loads or temperatures, a hybrid dry-wet system is often more efficient to achieve desired cooling temperatures.



Q2: Is the equipment noisy during operation?

A: Modern dry coolers are generally equipped with low-noise fans, such as EC motors, and can incorporate soundproofing. While fans generate some noise, advanced designs aim to keep noise levels below 70 dB, meeting the requirements of most projects and noise-sensitive environments.



Q3: Can it be monitored online?

A: Yes, modern dry coolers can be seamlessly integrated with PLC/SCADA/BMS systems and Industrial IoT platforms. This enables comprehensive remote monitoring, remote startup/shutdown, fault alarms, predictive maintenance, and historical data analysis.



Q4: Is customization possible?

A: Yes, manufacturers typically support customization of various parameters, including size, cooling capacity, airflow volume, fluid flow rate, structural materials, and interface standards, to meet specific project requirements.



Q5: Is regular maintenance required?

A: Dry coolers require significantly less maintenance compared to cooling towers. Regular cleaning of the fins and inspection of the fan's operating status are necessary, but the absence of water-related issues (scaling, corrosion, biological growth) drastically reduces maintenance frequency and costs.



Q6: What is the typical operating lifespan?

A: Under normal use and with proper maintenance, the typical operating lifespan of a dry cooler is 15 to 25 years. Core components like fans can often be replaced to further extend the overall lifespan of the unit.



Q7: What industries are suitable for this equipment?

A: Dry coolers are suitable for a wide range of industries, including data centers, pharmaceuticals, chemicals, food processing, cold chain, industrial manufacturing, power generation, and new energy projects (e.g., battery thermal management, solar facilities).



Q8: Can it be used in high-altitude or desert environments?

A: Yes, dry coolers are highly adaptable. For high-altitude environments, air density variations and fan performance need to be considered in design. In desert environments, while pure dry coolers may have efficiency limitations due to high temperatures, hybrid or adiabatic systems are highly effective, utilizing pre-cooling to enhance performance while maintaining water savings.
